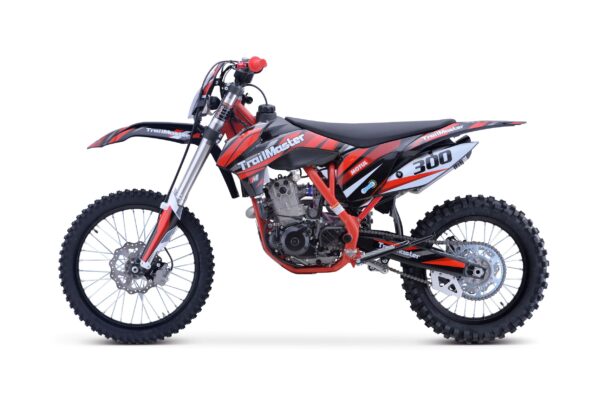

Trailmaster TM38 300cc 31HP Dirt Bike

Main Features:
* Powerful 4 stroke 298cc liquid cooled 31HP Balance Shaft engine
* Electric and kick start,  6 speed manual clutch
* Central Tube High Strength Steel Frame
* 59“ wheel base and 37” seat high
* PWK34 Competition Carburetor
* Front tire 21”/Rear Tire 18”
* Forged Aluminum Swingarm
* Dual Piston Caliper, 240mm Disc front brake
* 940mm Inverted Hydraulic Dual Adjustable Forks, 300mm Travel front shock
* 460mm Dual Adjustable Shock with Ballonet, 120mm Travel rear Shock
* LED Headlight

POWER SYSTEM
Engine Type NC298, Single Cylinder, 4-Stroke, 4-Valve, Liquid Cooled, SOHC, Balance Shaft
Displacement 298 ml
Max Power 23KW / 9000rpm – 31Hp
BorexStroke 82 x 53.6 mm
Lubrication Pressure and Splash
Shift Type Wet multi disc clutch, International Gear Pattern,6-Speed
Start Type Electric & Kick Start
Carburetor PWK34 Competition Carb.
Ignition Digital CDI
Drive Train #520 Chain, FT: 13T/RR: 51T Sprocket

PERFORMANCE
Front Fork Φ54*Φ60-940mm Inverted Hydraulic Dual Adjustable Forks, 300mm Travel
Rear Shock 480mm Dual Adjustable Shock with Ballonet, 120mm Travel
Front Wheel 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21
Rear Wheel 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18
Front Tires 80/100-21
Rear Tires 110/100-18
Front Brake Dual Piston Caliper, 240mm Disc
Rear Brake Single Piston Caliper, 240mm Disc

DETAILS
Frame Central Tube High Strength Steel Frame
Swing-Arm Forged Aluminum Swingarm,L=590mm
Handle Bar Tapered Aluminum  #7075
Overall Size 86.6″X33.9″49.2″/2200x860x1250mm
Packing Size 67.5″X18″X34″/1715x450x860mm
Wheel Base 59″/1500 mm
Seat Height 37″/940 mm
Ground Clearance 11.8″/300 mm
Fuel Capacity 6.5 L / 1.72 Gal.
N.W 234lbs/117KG
G.W 326lbs/148KG

“Competition only! No Warranty!”
