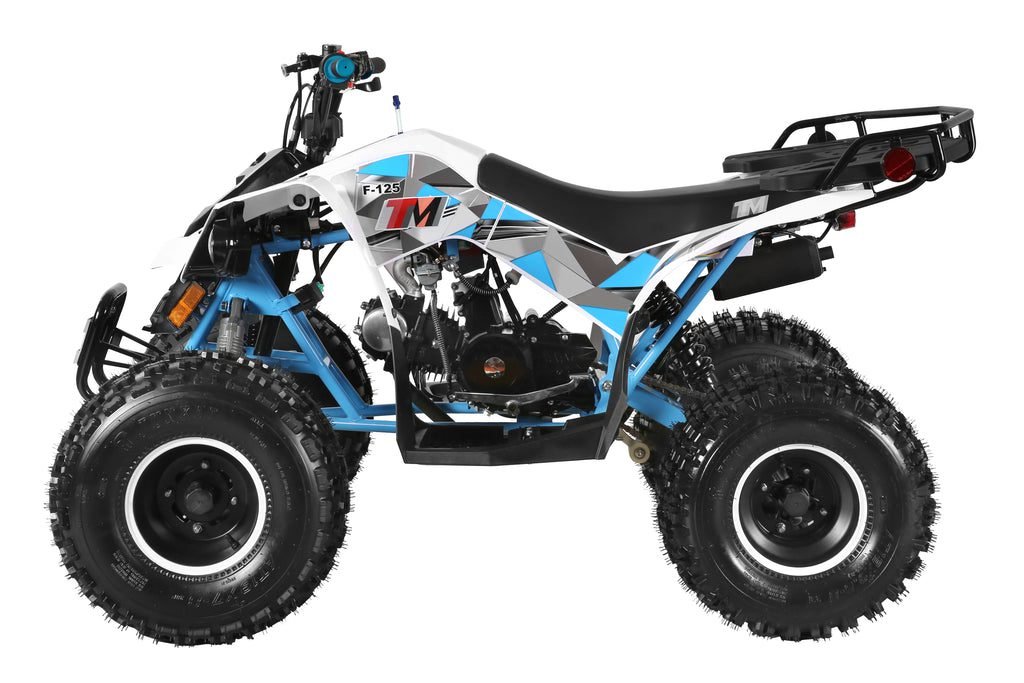

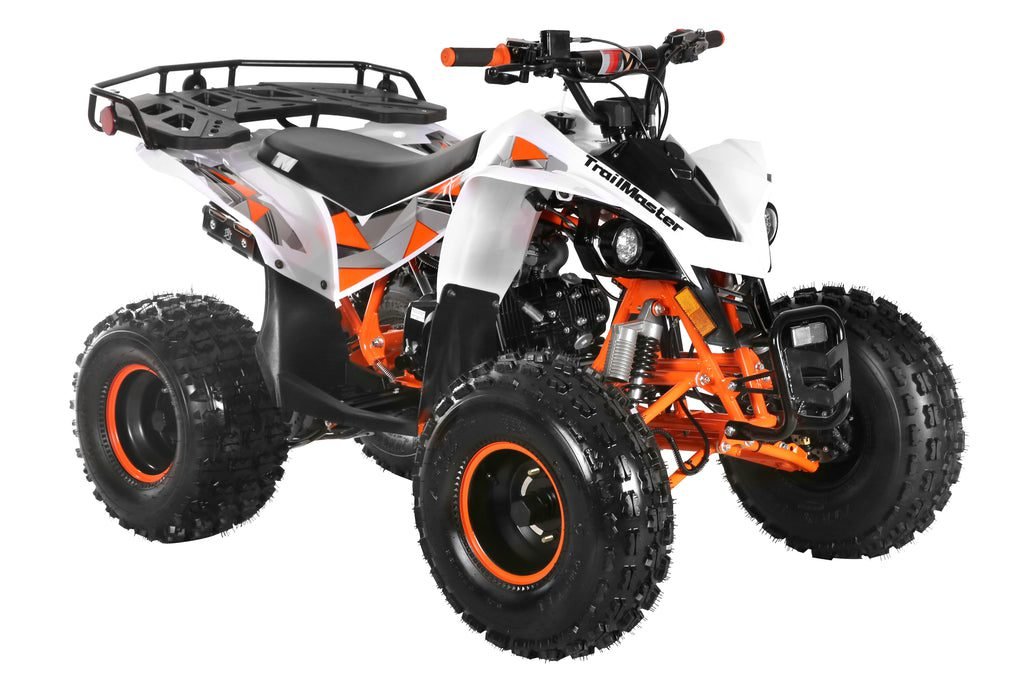

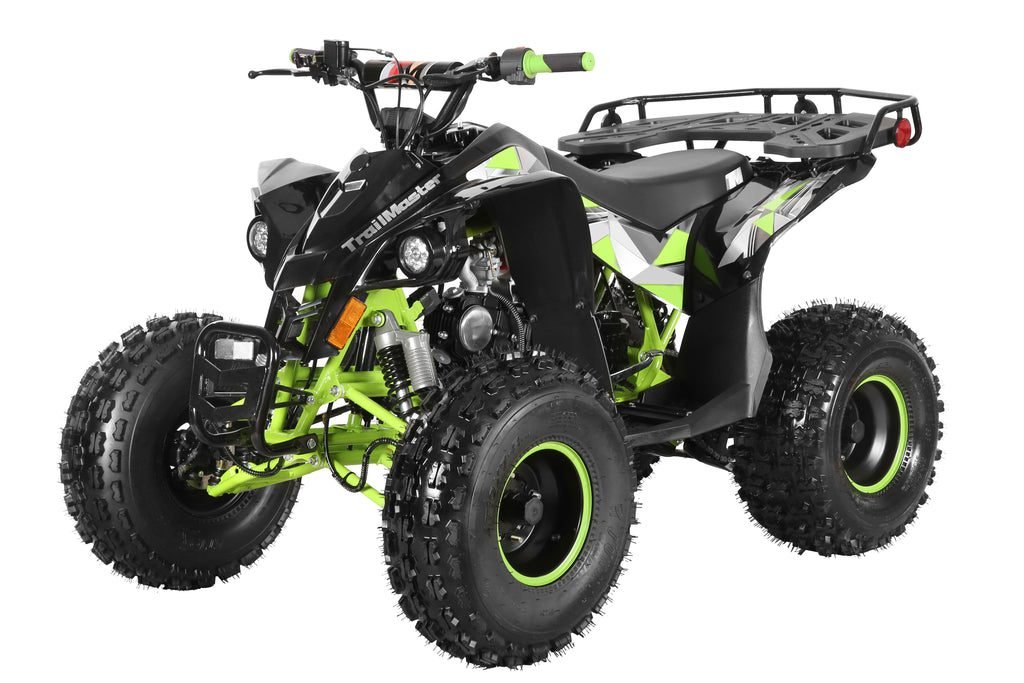

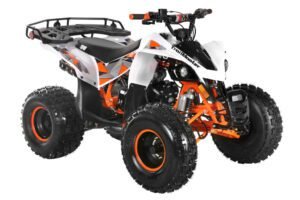

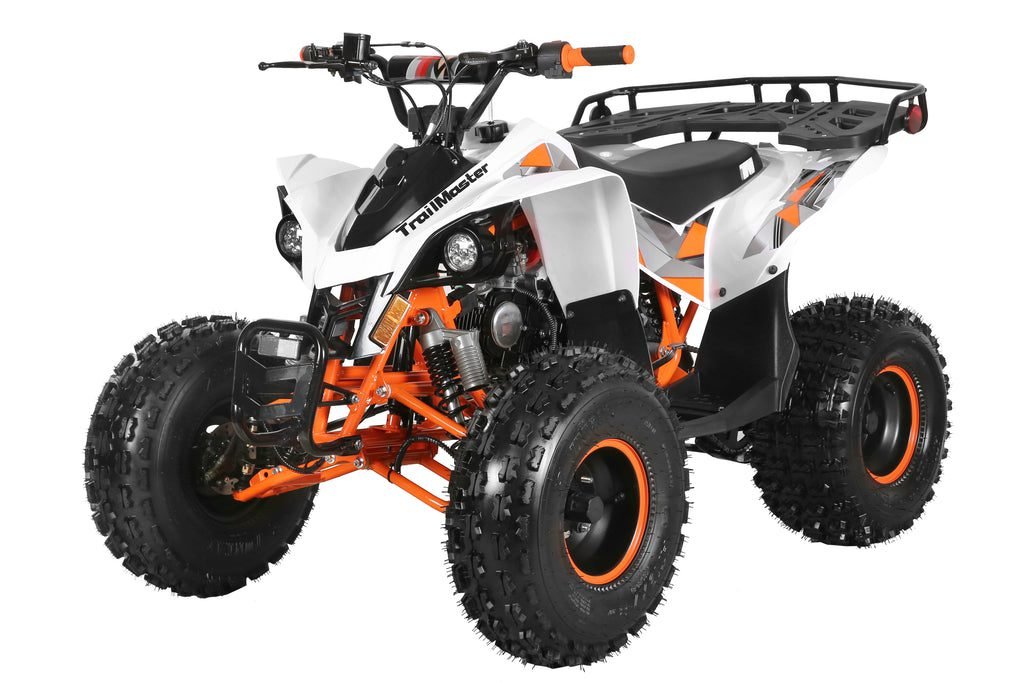

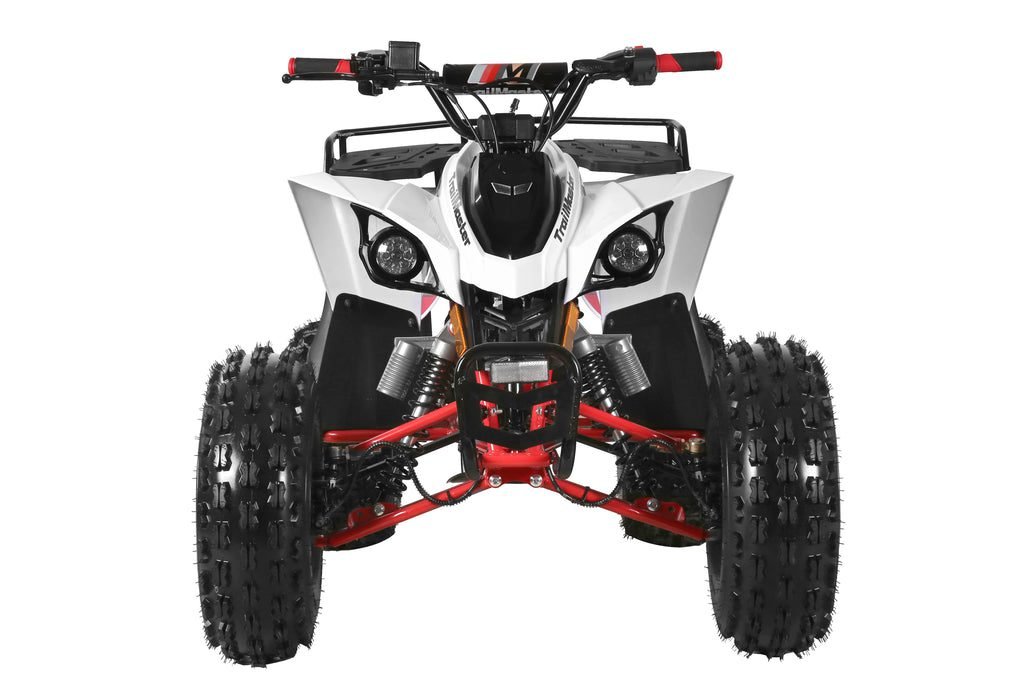

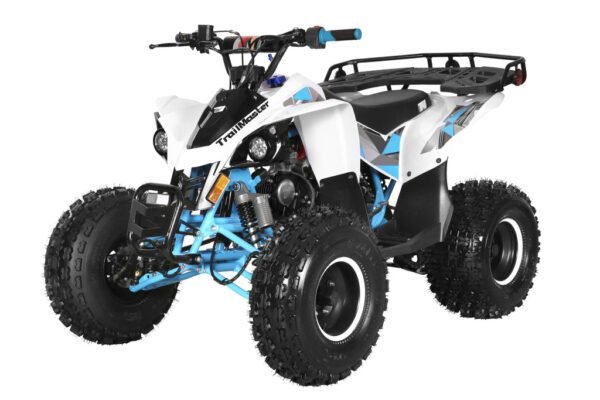

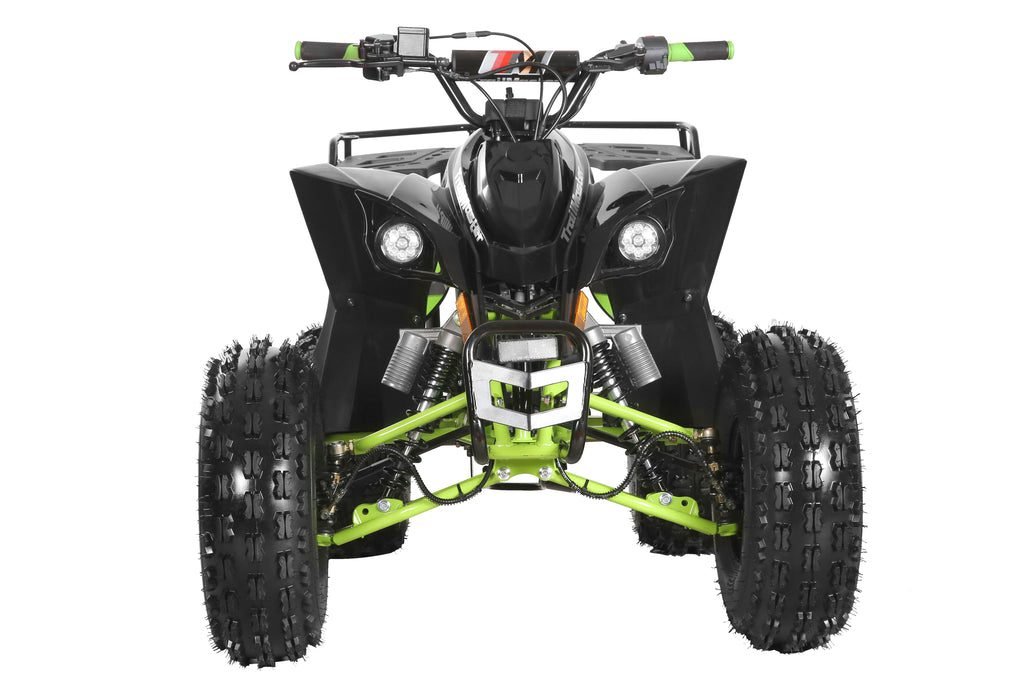

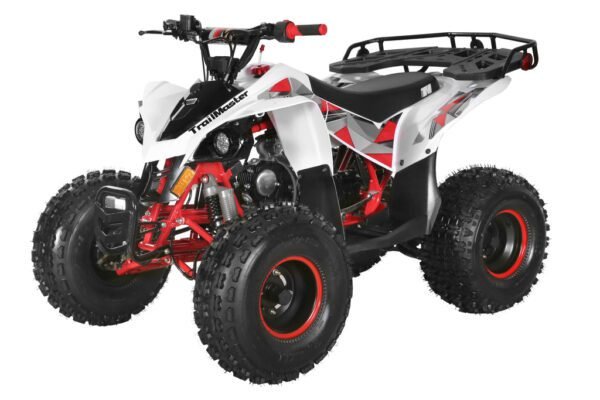

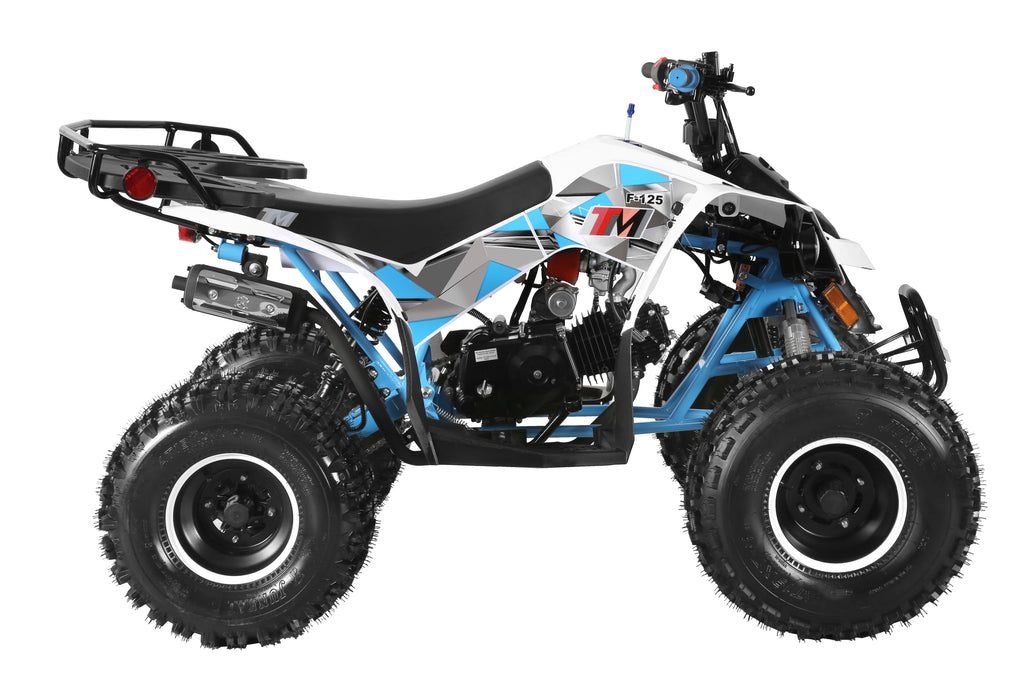

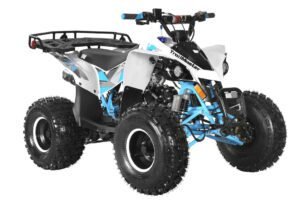

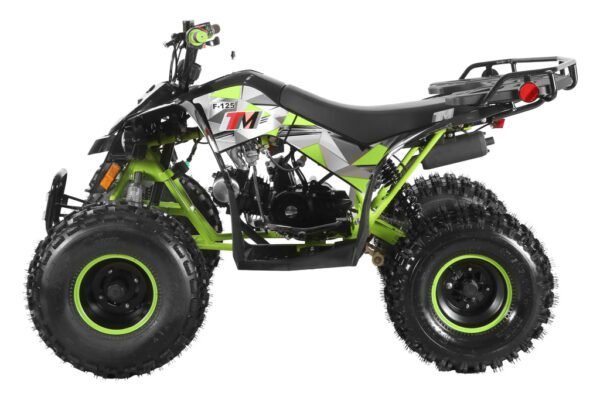

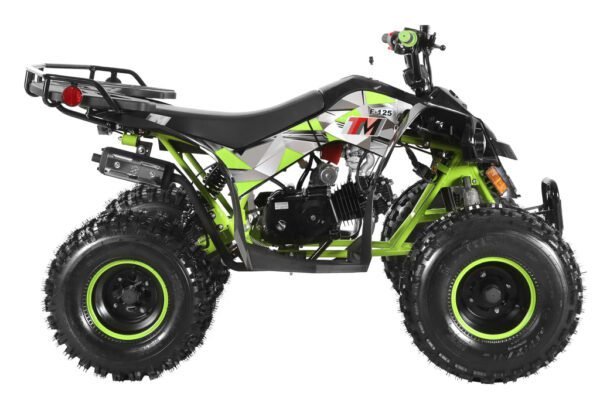

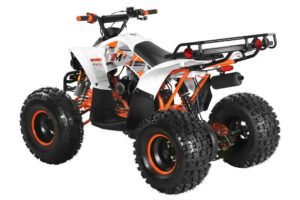

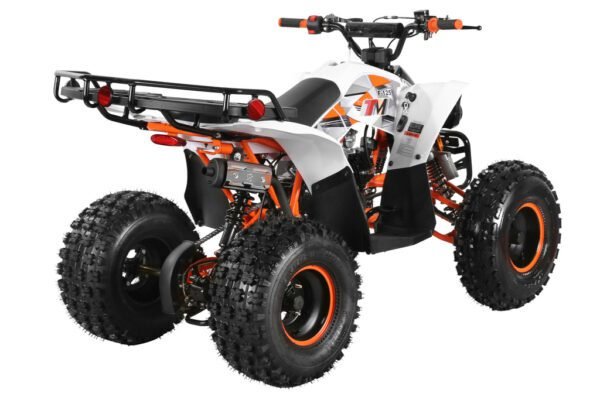

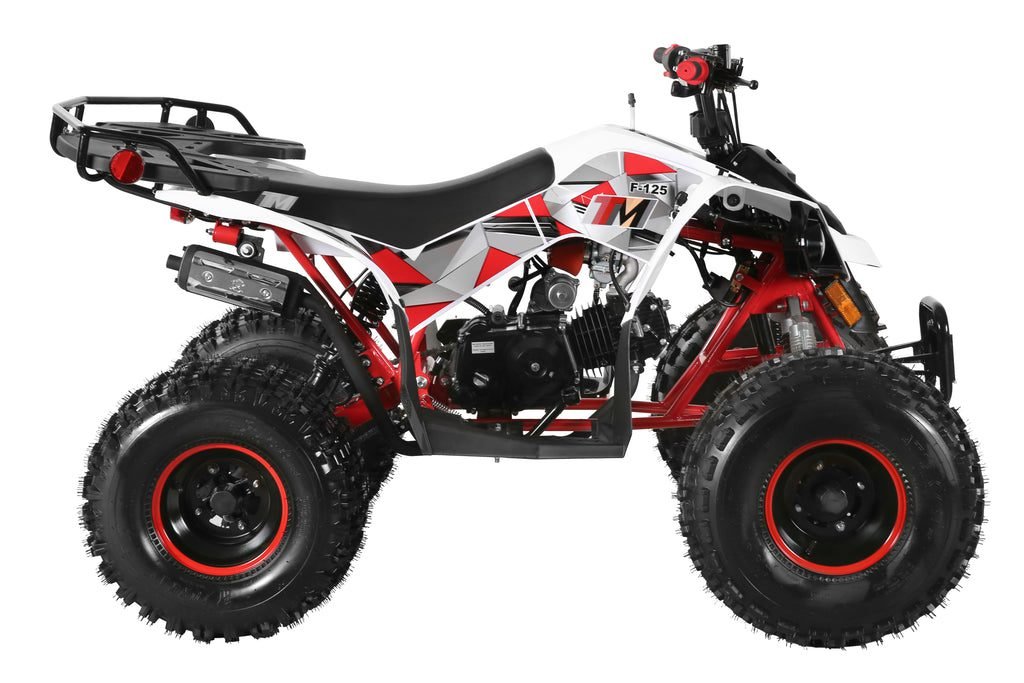

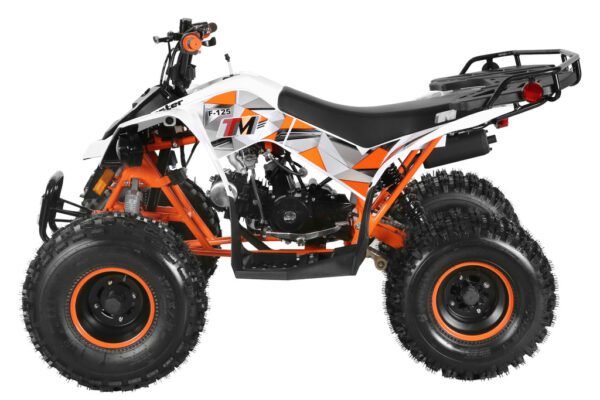

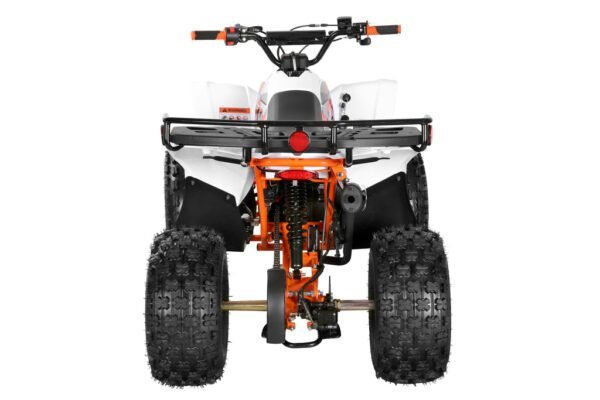

Trailmaster F125 Youth ATV, 125cc Air-Cooled Engine, Automatic with Reverse, 4-Stroke, Single Cylinder, electric start, Throttle Limiter

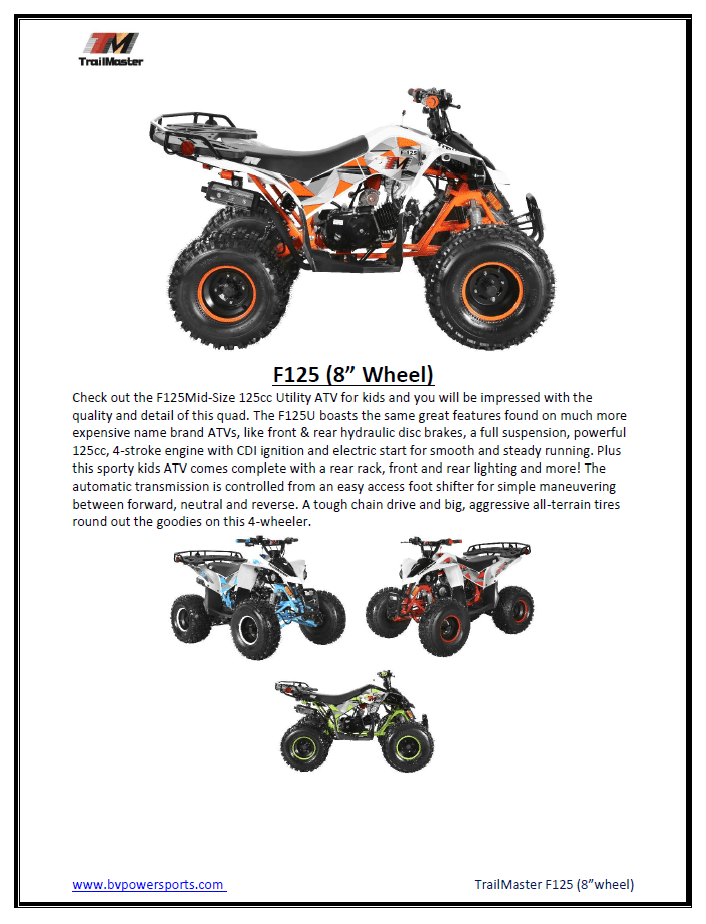

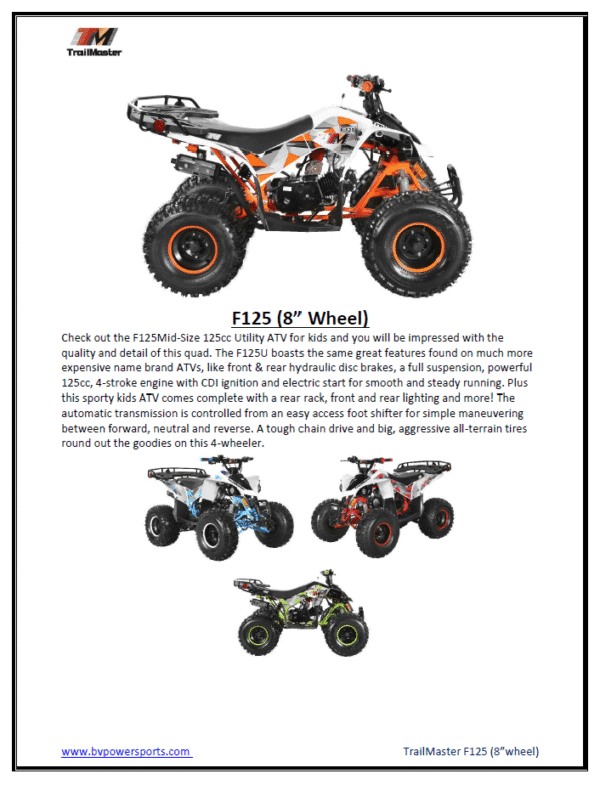

Check out the F125Mid-Size 125cc Utility ATV for kids and you will be impressed with the quality and detail of this quad. The F125U boasts the same great features found on much more expensive name brand ATVs, like front & rear hydraulic disc brakes, a full suspension, powerful 125cc, 4-stroke engine with CDI ignition and electric start for smooth and steady running. Plus this sporty kids ATV comes complete with a rear rack, front and rear lighting and more! The automatic transmission is controlled from an easy access foot shifter for simple maneuvering between forward, neutral and reverse. A tough chain drive and big, aggressive all-terrain tires round out the goodies on this 4-wheeler.
Key Features
-
125cc Electric Start engine
-
8” Rims
-
Fully Automatic Transmission (1F – N – R)
-
Hydraulic Disc Brakes (Front & Rear)
-
Chain Final Drive
-
Speed Governor
-
Front Bumper
-
Front Rack

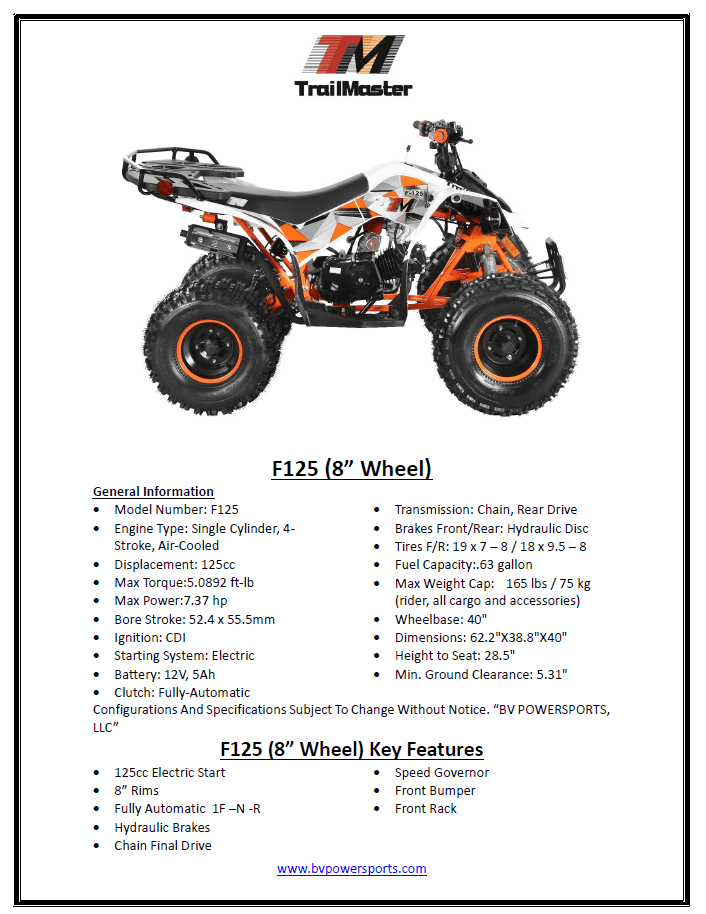

Vehicle Specifications
Engine & Drivetrain
- Engine Type: 125cc, Single Cylinder, 4-Stroke, Air-Cooled
- Max Power: 7.37 HP
- Max Torque: 5.09 ft-lb
- Bore × Stroke: 52.4 mm × 55.5 mm
- Ignition: CDI (Capacitor Discharge Ignition)
- Start System: Electric Start
- Clutch: Fully Automatic
- Transmission: Chain Drive (Rear Wheel Drive)
Suspension, Brakes & Tires
- Front Brakes: Hydraulic Disc
- Rear Brakes: Hydraulic Disc
- Tire Size: Front: 19×7-8, Rear: 18×9.5-8
Dimensions & Capacity
- Overall Dimensions (L × W × H): 62.2″ × 38.8″ × 40″
- Wheelbase: 40″
- Seat Height: 28.5″
- Ground Clearance: 5.31″
- Fuel Tank Capacity: Approx. 0.63 gal
- Weight Capacity: 165 lbs (75 kg including rider and cargo)
- Battery: 12V / 5Ah
